Introduction
PALSfit3 is a computer program for analysing positron lifetime spectra (measured by positron annihilation lifetime spectroscopy, PALS). PALSfit3 is based on the previous PATFIT and PALSfit programs, which have been used extensively by the positron annihilation community. PALSfit3 is a major update of PALSfit (version 2) now including broadening of lifetime components and with improved graphics output.

PALSfit3 is composed of two modules for fitting of positron lifetime spectra, PositronFit and ResolutionFit. In both fitting modules a model function will be fitted to a measured lifetime spectrum. This model function consists of a function representing the physics of the positron decay, which is convoluted with the experimental time resolution function, plus a constant background. The 'physics function' consists of a sum of decaying exponentials each of which may be broadened by convolution with a log-normal distribution. The time resolution function is described by a sum of Gaussians which may be displaced with respect to each other. Various types of constraints may be imposed on the fitting parameters.





In the PositronFit module, the fitting parameters to be extracted from a measured spectrum are for each lifetime component its mean lifetime and its broadening as well as its intensity. A correction for positrons annihilating outside the sample can be made as part of the analysis.

In the ResolutionFit module, parameters determining the shape of the time resolution function can be fitted. The extracted resolution function may then be used in PositronFit.

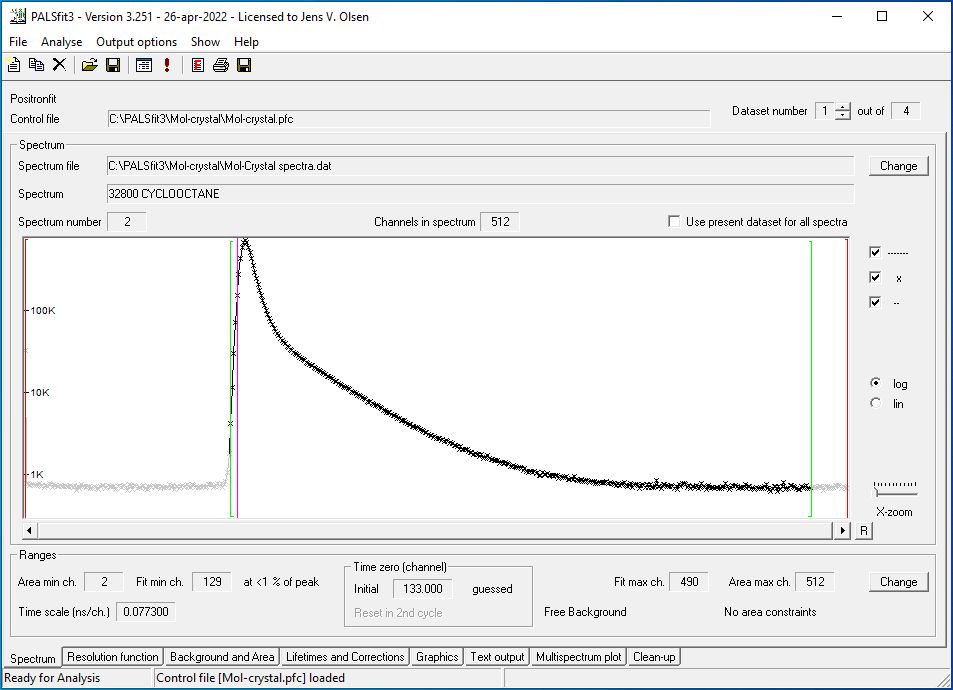

The main results will be displayed in a text window. In addition graphics displays are provided to ease the selection of some of the input parameters and to display results of spectrum analyses.

PALSfit3 is verified on Windows-XP and Windows 7, 8 and 10.


Documentation
The user interface of PALSfit3 is to a large extent selfexplanatory.

The official PALSfit3 report is found here: PALSfit3_report
The newest revision of the PALSfit3 report is found here:

Revised PALSfit3_report

Previous reports related to PALSfit: List of older reports
Description of spectrum files PALSfit spectrum files
List of types of files File types used by PALSfit


How to acquire PALSfit3
The full version of PALSfit3, including test data, can be installed here (PALSfit3 version 3.106).
PALSfit (version 2.86, without log-normal broadening) can be installed here

To be able to run the PALSfit3 program, a license key is required.

If you have already obtained a license key for PALSfit, you may use it for PALSfit3 (no extra charge).

To obtain a license key for the first time, please print the standard PALSfit License Agreement, fill it out, sign it and send a scanned copy as e-mail or post it to:

Morten Eldrup
Department of Energy Conversion and Storage
Technical University of Denmark
Risø Campus
P.O.B. 49
DK-4000 Roskilde
Denmark

phone: +45 4677 5728
e-mail:palsfit@risoe.dtu.dk

You will then receive the license key by e-mail. An invoice will be sent to you later.

The PATFIT program package (without the GUI interface) is available for licensed users upon request.


Price
The price of a full PALSfit license is EUR 700 (with a 50% discount for those who have previously acquired the PATFIT program).

The PALSfit license admits at any time installation and execution of all new updates of PALSfit3.


Free demo version
A demo version of PALSfit3 can be installed free of charge, and may be used without any license key.
The demo serves to demonstrate the main features of the program but has limited functionality (for example, only the PositronFit part is available, the number of channels and lifetimes are limited etc.).
Data for testing the program are included in the package.

Install Demo Version (PALSfit3_demo version 3.106)


Authors
Jens V. Olsen, Peter Kirkegaard and Morten Eldrup
Technical University of Denmark
Risø Campus
Frederiksborgvej 399
P.O.B. 49
DK-4000 Roskilde, Denmark

e-mail: palsfit@risoe.dtu.dk
